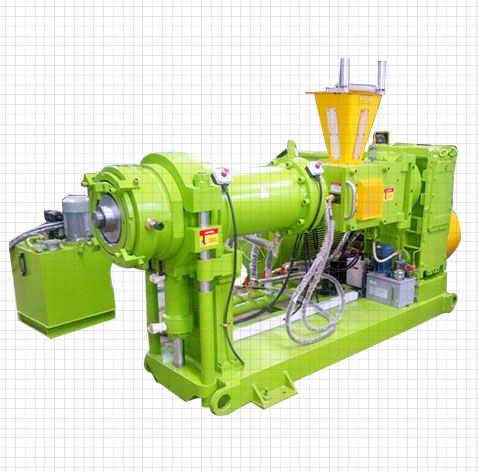

HOT FEED EXTRUDERS

SALIENT FEATURES OF HOT FEED EXTRUDERS

  •   Our extrusion are fitted with two stage helical gear box in place of worm reduction gear box for achieving high efficiency.
  •   Scroll & liners are made of EN-41b, nitra hardened and polished.
  •   All extruders equipped with variable drive systems of siemens make. Barrels are steel fabricated, jacketed for heating and cooling with replaceable liners.
  •   Feed rolls are specially designed for easy maintenance.
  •   Feeding arrangement with spiral undercut and feed roll arrangement provided which ensures a proper bite & strip fed to screw.

L/D Ratio , Scroll speeds and Motor Power
other than given above on request.
For 'HARD TO PROCESS' rubber compounds, lower scroll speeds are provided with high motor power.

Note : Specifications are indicative and we have the right to modify them without prior notice.
Accessories shown in the brochure are not part of the standard machine.

TECHNICAL SPECIFICATIONS

MODEL BHF-40 BHF-55 BHF-63 BHF-75 BHF-100 BHF-115 BHF-150 BHF-200 BHF-250
SCROLL SIZE 40 mm 55 mm 63 mm 75 mm 100 mm 115 mm 150 mm 200 mm 200 mm
L/D RATIO 6:1 6:1 6:1 6:1 6:1 6:1 6:1 6:1 6:1
SCROLL SPEED 60 60 60 60 60 60 60 60 60
ELECTRIC MOTOR POWER 5 HP 7.5 HP 15 HP 20 HP 30 HP 40 HP 100 HP 200 HP 200 HP
APPROX OUTPUT/HR FEEDING 30
kg/hr		 40/45
kg/hr		 50/55
kg/hr		 65/70
kg/hr		 125/150
kg/hr		 150/175
kg/hr		 300/400
kg/hr		 500/750
kg/hr		 500/750
kg/hr
FEEDING HOPPER WITH SPIRAL UNDERCUT WITH STANDARD FEED ROLL
HEATING & COOLING BARREL JACKETED IN SINGLE ZONE BARREL JACKETED IN DOUBLE ZONE
EXTRUDER HEAD STANDARD ADAPTOR OTHER HEADS OPTIONAL
WEIGHT ON FOUNDATION 600 Kg. 750 Kg. 900 Kg. 1200 Kg. 1800 Kg. 2000 Kg. 4000 Kg. 8500 Kg. 8500 Kg.
COOLING WATER CONSUMPTION 5 lpm 10 lpm 13 lpm 20 lpm 40 lpm 50 lpm 75 lpm 150 lpm 150 lpm

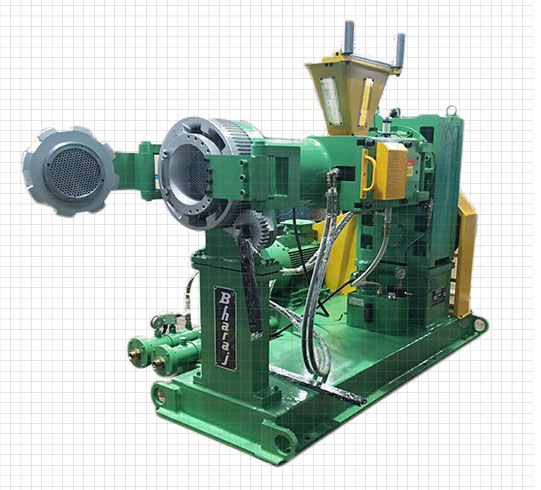

STRAINERS EXTRUDERS

PRODUCT INTRODUCTION

Silicon Extruder are made specially keeping in view the nature and properties of silicon Rubber. As silicon Rubber is very sticky and soft by nature, it takes time to clean the screw, In case of change in the colour or compound. So Bharaj has developed a very unique design in which the screw and barrel can be cleaned quickly with sliding arrangement.

FEATURES

  •   Equipped with hardened feed roller for accurate & consistent feeding of rubber strips inside the extruder. This helps in maintaining consistent extrusion pressure resulting in high quality extrusions.
  •   Equipped with water circulations systems through rotary pressure joints.
  •   Feeding arrangement with spiral undercut and feed roll arrangement provided which ensures a proper bite & strip fed to screw.
