SALIENT FEATURES

  •   No warming mill required as cold rubber can be feeded at room temperature thus saving power, and labour and cost of warming mills.
  •   Scroll and liners made of EN-41b, nitra hardened and polished.
  •   A special pressure melt transducer is provided which gives a pressure indication on the head & controls the screw rpm a per the set pressure valve enabling extrusion at a consistent pressure.
  •   Barrels are steel fabricated, jacketed for heating and cooling with replaceable liners.
  •   Feed rolls are specially designed for easy maintenance.
  •   Feeding arrangement with spiral undercut and feed roll arrangement provided which ensures proper bite & strip feed to the screw.
  •   Automatic temperature controlling system.
Our Extruders For Your Products Like Various Rubber Profiles Industrial Hoses, A/C Insulation Tubes Automative Hoses, Tyre Treads, Dock Fenders & Various Rubber Extruded Items
A colour touch screen display is provided in the control panel enabling a trouble free and easy operation, where in you can set the pressure, temperature of the zone, rpm monitoring and extrusion output in kg/hour. It is also provided with a fault finding system and can be provided with optional data logging system.
BHARAJ cold feed equipped with a special heating/ cooling systems controlled by pid controllers giving an accurate temperature (+/- 1 degree) resulting in better quality extrusion.

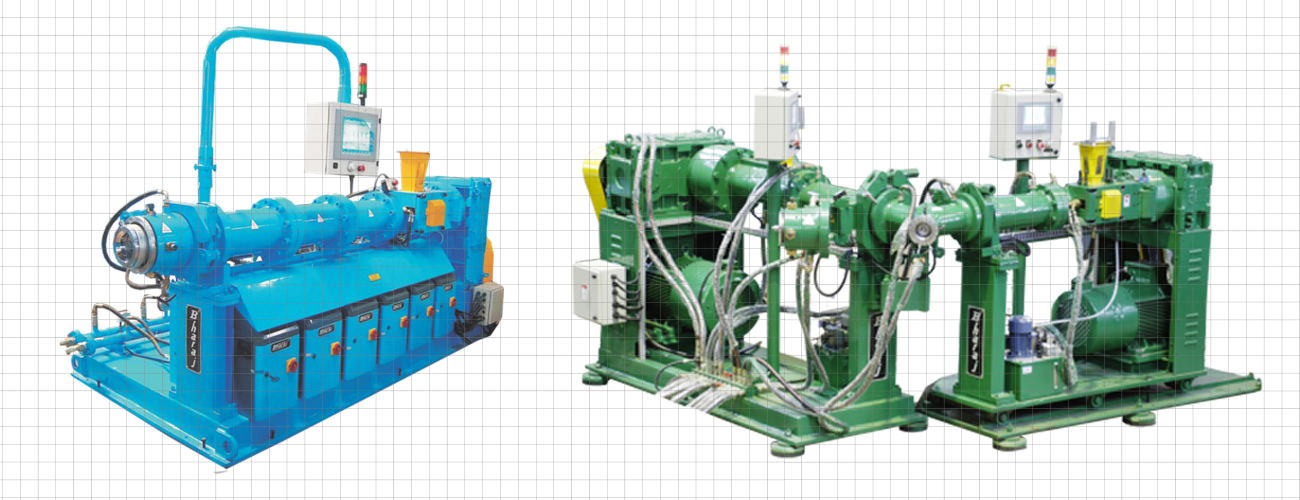

PLAIN BARREL COLD FEED RUBBER EXTRUDERS

MODEL BCF 45 BCF 63 BCF 75 BCF 90 BCF 120 BCF 150 BCF 200
SCROLL DIA 45 MM 60 MM 75 MM 90 MM 120 MM 150 MM 200 MM
L/D RATIO 10:1 10:1 12:1 16:1 16:1 16:1 16:1
SCROLL SPEED 6-60 RPM 6-60 RPM 6-60 RPM 6-60 RPM 6-60 RPM 6-60 RPM 6-50 RPM
ELECTRICAL MOTOR
(D/C OR A/C VARIABLE DRIVE)		 15 H.P. 25 H.P. 40 H.P. 60 H.P. 120 H.P. 200 H.P. 300 H.P.
OUT-PUT PER HOUR 40-60
KGS/HRS		 100-150
KGS/HRS		 150-200
KGS/HRS		 300-400
KGS/HRS		 600-800
KGS/HRS		 1200-1400
KGS/HRS		 2000-2400
KGS/HRS
FEEDING HOPPER WITH SPIRAL UNDERCUT AND FEED ROLL ARRANGEMENT
EXTRUDER HEAD STD ADAPTOR HEAD AND OTHER HEADS ARE OPTIONAL
TEMPERATURE CONTROLLING SYSTEM TWO ZONES THREE ZONES THREE ZONES FOUR ZONES FOUR ZONES FOUR ZONES FOUR ZONES

VENT / VACUUM TYPE COLD FEED RUBBER EXTRUDERS

MODEL BCFV 63 BCFV 75 BCFV 90 BCFV 120 BCFV 150 BCFV 200
SCROLL DIA 60 MM 75 MM 90 MM 120 MM 150 MM 200 MM
L/D RATIO 10:1 12:1 16:1 16:1 16:1 16:1
SCROLL SPEED 6-60 RPM 6-60 RPM 6-60 RPM 6-60 RPM 6-60 RPM 6-50 RPM
ELECTRICAL MOTOR
(D/C OR A/C VARIABLE DRIVE)		 25 H.P. 40 H.P. 60 H.P. 120 H.P. 200 H.P. 300 H.P.
OUT-PUT PER HOUR 105-120
KGS/HRS		 140-160
KGS/HRS		 280-320
KGS/HRS		 560-600
KGS/HRS		 900-1100
KGS/HRS		 1400-1650
KGS/HRS
VACUUM PUMP CAPACITY 0.25 HP 0.5 HP 1 HP 1 HP 1.5 HP 2 HP
FEEDING HOPPER WITH SPIRAL UNDERCUT AND FEED ROLL ARRANGEMENT
EXTRUDER HEAD STD ADAPTOR HEAD AND OTHER HEADS ARE OPTIONAL
TEMPERATURE CONTROLLING SYSTEM TWO ZONES THREE ZONES THREE ZONES FOUR ZONES FOUR ZONES FOUR ZONES
